제품특성/기능

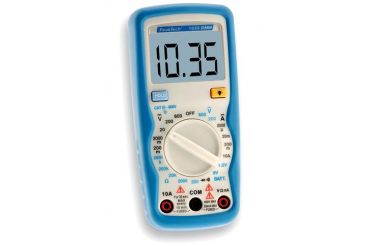

Compact 3½ digit multimeter for measuring voltage, current and resistance and also including diode and continuity tests. Complete with pouch, leads and battery.
제품규격
DC voltage |
AC voltage |
DC current | Resistance | Display | Operating voltage | Safety classification | Fuse | Dimensions | Weight |
200 mV ? 600 V, 5 ranges, ±0.5% ± 2 digits |
200/ 600 V, 2 ranges, ±1.2% ± 10 digits |
2000 μA ? 10 A, 4 ranges, ±1% ± 2 digits | 200 Ω ? 2000 kΩ, 5 ranges, ±0.8% ± 2 digits | 3½ digit LCD, 27 mm, max: 1999 | 9 V battery | CAT III 600 V (IEC-1010-1) | F1: F 200 mA / 600 V F2: F 10 A / 600 V, Imax. = 10 A for 30 s with minimum interval 15 mins | approx. 70x150x48 mm3 | approx. 260 g |
