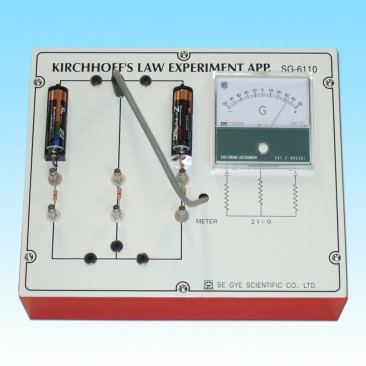

Features / Functions
Measure
a voltage and an electric current on a circuit which is made of resistances and
electromotive forces by the voltmeter and the ammeter and verify kirchhoff’s
law. And seek values of a resistance and try to get familiar with color code of
a resistance.
Standard
Panel(1)
: drawing circuit
Resistor Set(1)
: 30KΩ(5), 68KΩ(5), 100KΩ(5), 220KΩ(5)
Batter(2) : AA 1.5V
Option / Accessories
Experiment contents
